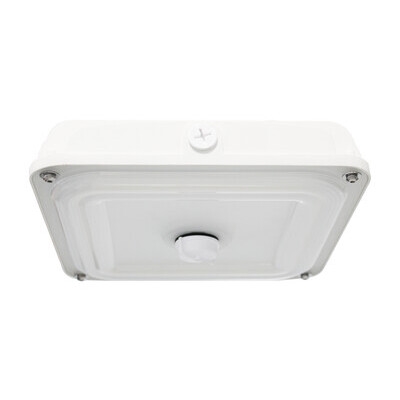

EiKO 12594 - SCS/70W/850/UD/W - Surface Canopy Square - LED - 70W - 5000K - White

Download The Installation PDF

Download The Spec Sheet

Price: $138.79

Qty:

Description

Technical Specs

Part Number: 12594
Part Number Description: SCS/70W/850/UD/W

0-10V/Dimmable

Wattage - 70w (250w-320w equivalent)
Voltage - 120-277v
Color Temp - 5000K
Lumens - 9,725lm
Rated Life L80: 72,000 Hours
Finish - White

Quick mount design simplifies installation: Quick Mount Surface Bracket Included
Standard Z10 receptacle simplifies adding controls
Low profile is ideal in applications with low mounting heights
1/2" NPS entry points for conduit and accessories
1/2" NPS Pendant Mount
Optional: Field installed "garage" lens, optimizes the light distribution for garage applications
Die-cast aluminum construction
Impact-resistant polycarbonate lens
UL Listed for Wet Locations
IP65 Rated, CA Exempt, IK10 Impact Rated
DesignLights Consortium 5.1 Premium Qualified - Meets requirements for the highest DLC qualification for efficacy and lumen maintenance
5 year factory warranty (limited)

Features

- Input voltage: 120-277V
- 0-10V Dimming
- Impact-resistant polycarbonate lens
- Quick Mount Bracket Included
PERFORMANCE:
- Rated lifetime L80: 72,000 hours
- 5000K CCT
- IP65 Rated
- CRI: >80
